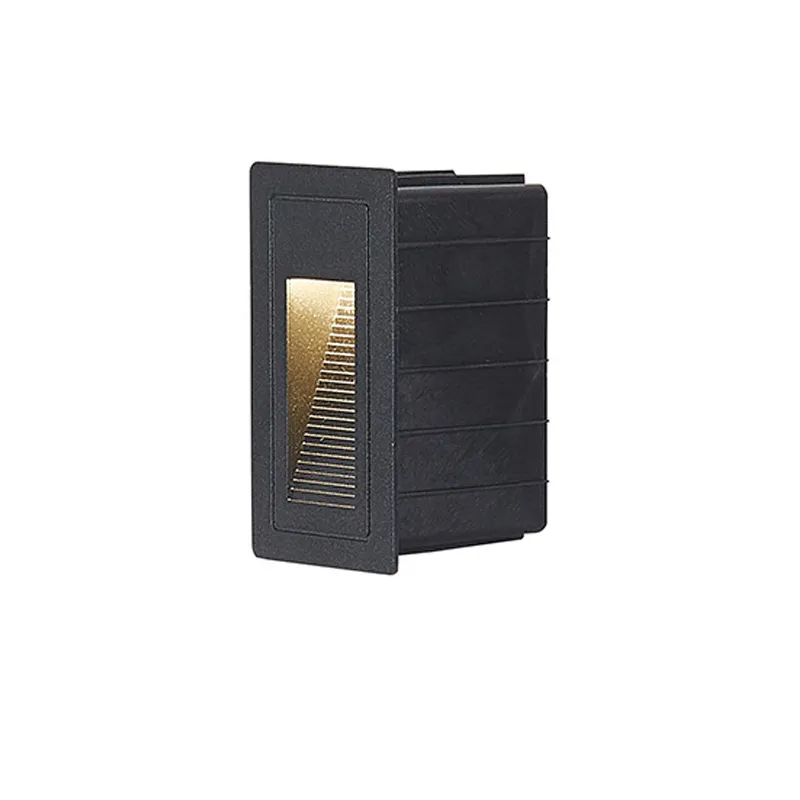

3W Outdoor Recessed Wall Foot Light Vertical style
| CRI | >80 | ||||
| Delivered flux | 240lm | ||||
| Delivered efficiency | 80 lm/W | ||||
| Input power | 3W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 3000K/4000K | ||||
| Beam angle | diffuse | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 240lm | ||||
| Delivered efficiency | 80 lm/W | ||||
| Input power | 3W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 3000K/4000K | ||||
| Beam angle | diffuse | ||||
PARAMETER
| IP rating | 65 | ||||
| Ik rating | 8 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >80 | ||||
| Step McAdam | 3 | ||||
| Source flux | 360 lm | ||||
| Source efficiency | 120 lm/W | ||||
| Delivered flux | 240 lm | ||||
| Delivered efficiency | 80 lm/W | ||||
| Input power | 3W | ||||
| Supply voltage | 110~240V AC | ||||
| Insulation Class | insulation class III | ||||
| Power supply | constant current driver | ||||
| Material | aluminium | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | diffuse | ||||
| Mounting | Recessed Wall Mounting | ||||
| Reflector color | - | ||||
| Finishing | white/black | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/off
CONSTRUCTION
This outdoor recessed wall foot light features a diffused reflection design, providing soft, glare-free illumination for enhanced visual comfort. With a durable die-cast aluminum housing and IP65 waterproof rating, it ensures long-lasting performance in outdoor environments.
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
SPECIFICATIONS
TECHNICAL DRAWING
PHOTOMETRICS
