Yingyue Lake Park Lighting Project
Guicheng Yingyue Lake is located in Guicheng Street, Nanhai District, Foshan City. It is one of the core landscapes of Guicheng Pingzhou District. Yingyue Lake Park is the first large lake landscape park in Pingzhou District of Guicheng Street, and it is also the first moon-themed park in Foshan. The main layout of the park is three lakes and two embankments, including Yingyue Lake Square, Runyue Square, Main Axis Streamer, Waterfront Square, Moon Island, Moon Bridge, Songyue Square and Yuelao Square.
This lighting project is mainly the supply and installation of all conventional lighting fixtures in the park. The types of lamps include garden lights, tree lights, bollard lights, light strips, etc. There are 11 types in total. The lamps used in this project are all outdoor lamps, and the waterproof level is required to reach IP65 or above. Some light strips close to the lake are required to reach IP67.
| Item No. | Image | Description | Qty. | Unit |
| 1 |  | Pillar lamp 10W, 3000K, Ra80+, Beam Angle -diffuse reflection, High power LEDs, AC220V(with built-in driver), Material: Aluminium, Control: on/off Size: Φ170*900mm IP65 | 227.00 | Nr |

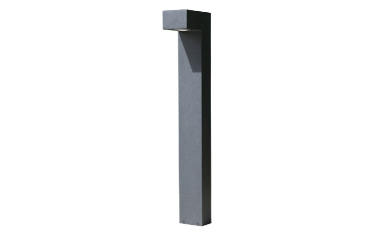

| 2 |  | Pillar lamp 8W, 3000K, Ra80+, Beam Angle -90°, High power LEDs, AC220V(with built-in driver), Material: Aluminium, Control: on/off Size: 1000*200*122mm IP65 | 67.00 | Nr |
| 3 |  | Pillar lamp 8W, 3000K, Ra80+, Beam Angle -diffuse reflection, High power LEDs, AC220V(with built-in driver), Material: Aluminium, Control: on/off Size: Φ170*900mm IP65 | 46.00 | Nr |
| 4 |  | garden lamp30W, 3000K, Ra80+, Beam Angle -120°, High power LEDs, AC220V(with built-in driver), Material: Aluminium, Control: on/off Size: Φ400*H55, Pole: Φ76*4000mm IP65 | 114.00 | Nr |
| 5 |  | Recessed Wall Light 8W, 3000K, Ra80+, Beam Angle -diffuse reflection, High powel LEDs, AC220V(with built-in driver), Material: aluminum, Control: on/off Size: 205*85*50mm IP65 | 3.00 | Nr |
| 6 |  | Flexlight 10W/M, 3000K, Ra80+, Beam Angle -Diffuse scattering, High powel LEDs, DC24V, Material: silicone, Control: on/off Size: 10*10mm IP67 | 43.00 | Lm |
| 7 |  | Flexlight 10W/M, 3000K, Ra80+, Beam Angle -Diffuse scattering, High powel LEDs, DC24V, Material: silicone, Control: on/off Size: 10*10mm IP67 | 879.00 | Lm |
| 8 |  | Bracket Spot Light 48W, 3000K, Ra80+, Beam Angle -60°, High power LEDs, AC220V, Material: Aluminium, Control: on/off Size: Φ205*239mm IP65 | 32.00 | Nr |
| 9 |  | Seat type spotlight 20W, 3000K, Ra80+, Beam Angle -50°, High power LEDs, AC220V(with built-in driver), Material: Aluminium, Control: On /Off, Size: Φ80*110mm IP66 | 6.00 | Nr |
| 10 |  | Peak Spotlight 7W, 3000K, Ra80+, Beam Angle -30°, High power LEDs, AC220V, Material: Aluminium, Control: on/off Size: Φ50*140*230mm IP65 | 383.00 | Nr |
| 11 |  | Ground-mounted Soptlight 6W, 3000K, Ra80+, Beam Angle -90°, High power LEDs, AC220V, Material: Aluminium, Control: on/off Size: Φ80*Φ95*110*230mm IP65 | 9.00 | Nr |
Real shot of the night scene after the project is completed:
