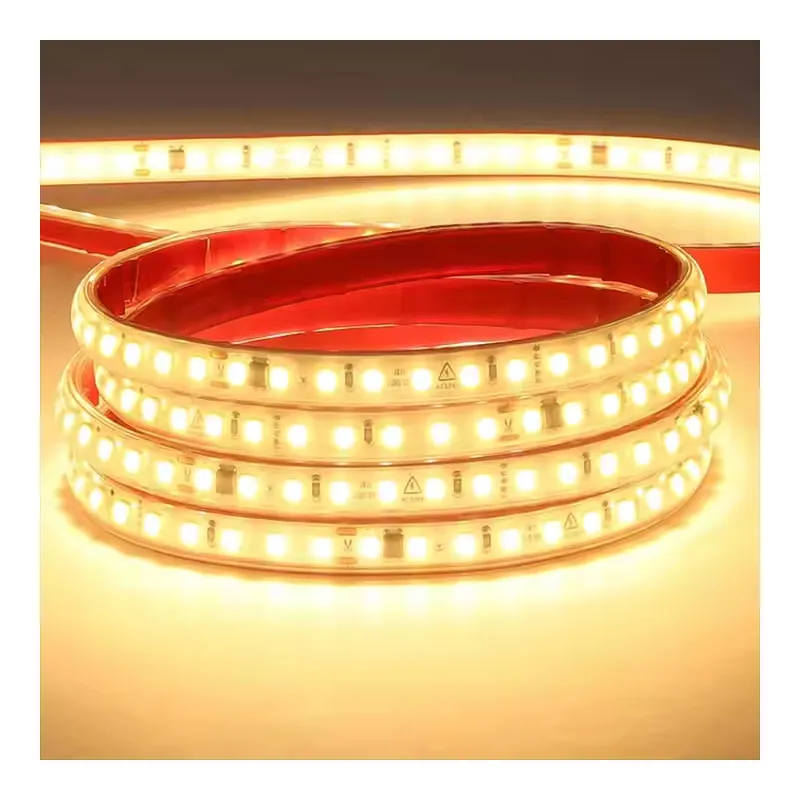

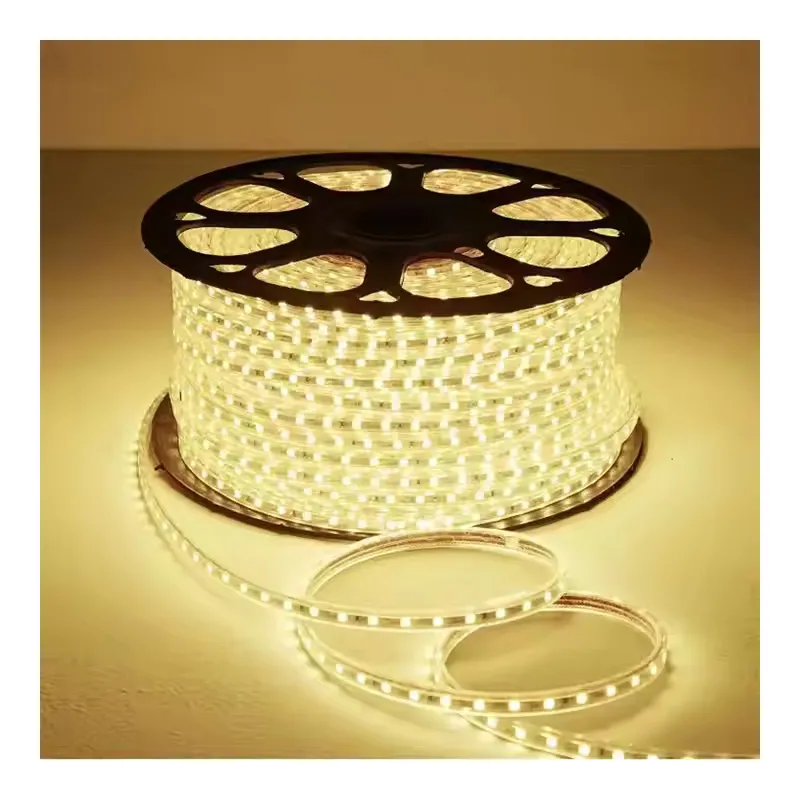

10W CCT 2700-6000K LED Strip
| CRI | >80 | ||||
| Delivered flux | 1200 lm | ||||
| Delivered efficiency | 120 lm/W | ||||
| Input power | 10W | ||||
| Supply voltage | 24V DC | ||||
| Light colour/CCT | 2700K/3000K/4000K/6000K | ||||
| Beam angle | 120° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 1200 lm | ||||
| Delivered efficiency | 120 lm/W | ||||
| Input power | 10W | ||||
| Supply voltage | 24V DC | ||||
| Light colour/CCT | 2700K/3000K/4000K/6000K | ||||
| Beam angle | 120° | ||||
PARAMETER
| IP rating | 20 | ||||
| Ik rating | 0 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >90 | ||||
| Step McAdam | 3 | ||||
| Source flux | 1200 lm | ||||
| Source efficiency | 120 lm/W | ||||
| Delivered flux | 1200 lm | ||||
| Delivered efficiency | 120 lm/W | ||||
| Input power | 10W | ||||
| Supply voltage | 24V DC | ||||
| Insulation Class | insulation class I | ||||
| Power supply | - | ||||
| Material | Flexible Printed Circuit | ||||
| Light colour/CCT | 2700K/3000K/4000K/6000K | ||||
| Beam angle | 120° | ||||
| Mounting | surface mount | ||||
| LED Qty | 120 | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/off
CONSTRUCTION
Flexible Printed Circuit,Double sided adhesive tape on the back of the light strip
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
SPECIFICATIONS
TECHNICAL DRAWING
PHOTOMETRICS
