Lamp Selection Guide
Lamp Selection Guide
This recessed spotlight features an aluminum heat sink for excellent heat dissipation. The bracket is separate from the lamp body, allowing for an adjustable angle of up to 15 degrees to meet various lighting needs. The reflector cup can be customized with different colors according to customer preferences, enhancing its decorative effect. It is suitable for various indoor settings, providing flexible and comfortable lighting.
This recessed spotlight features an aluminum heat sink for excellent heat dissipation. The bracket is separate from the lamp body, allowing for an adjustable angle of up to 15 degrees to meet various lighting needs. The reflector cup can be customized with different colors according to customer preferences, enhancing its decorative effect. It is suitable for various indoor settings, providing flexible and comfortable lighting.
Close
Learn More
INDOOR LIGHTING
Commercial Lighting
Application: Office buildings, malls, supermarkets, restaurants
Key Requirements: Uniform lighting, high color rendering, energy efficiency, low glare
Recommended Fixtures & Parameters:
Ceiling Light:
Power: 24W/36W/48W
Color Temperature: 3000K (Warm White), 4000K (Neutral White), 6000K (Cool White)
Color Rendering Index (CRI): >80
Luminous Flux: 2400 lm 4800 lm
IP Rating: IP20
Panel Light:
Power: 36W/48W
Color Temperature: 4000K 5000K
CRI: >80
Luminous Flux: 3600 lm 4800 lm
Installation: Recessed, suspended, or surface-mounted
Downlight:
Power: 10W/20W/30W
Cut-out Size: 75mm 150mm
Color Temperature: 3000K/4000K
CRI: >80
Beam Angle: 30° 60°
IP Rating: IP20
Residential Lighting
Application: Living room, bedroom, kitchen, bathroom
Key Requirements: Soft lighting, dimmable, aesthetically pleasing
Recommended Fixtures & Parameters:
Recessed Downlight:
Power: 5W/7W/12W
Color Temperature: 2700K/3000K (Warm White)
CRI: >90 (Improves color accuracy in home spaces)
Cut-out Size: 70mm 100mm
IP Rating: IP20 (For bathrooms, IP44 or above is needed)
Pendant Light:
Power: 15W 60W (Depends on the number of bulbs and light source)
Color Temperature: 2700K 3000K (Warm Light)
CRI: >80
Installation Height: 2.1m 2.4m from the floor
Magnetic Track Light:
Power: 10W/20W (per light module)
Beam Angle: 15°/24°/36° (Various angles for different applications)
Color Temperature: 3000K/4000K
CRI: >90
Installation: Recessed magnetic track system with flexible positioning

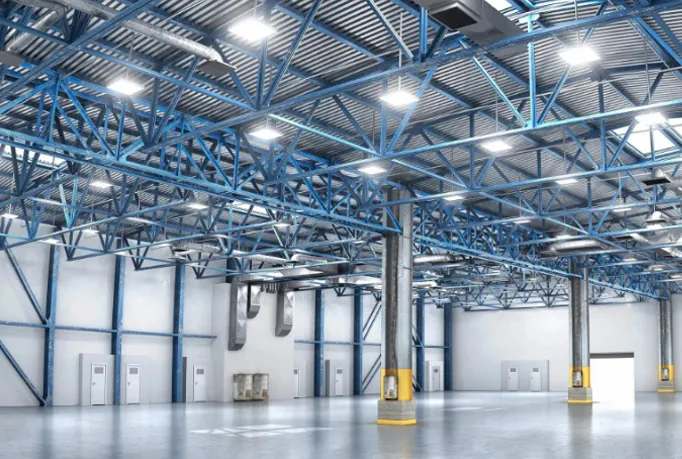

Industrial Lighting
Application: Factories, warehouses, underground parking lots
Key Requirements: High brightness, durability, dust and waterproof
Recommended Fixtures & Parameters:
High Bay Light:
Power: 100W/150W/200W
Color Temperature: 5000K 6000K (Cool White)
Luminous Flux: 10000 lm 20000 lm
CRI: >70
IP Rating: IP65
Impact Protection: IK08
Explosion-proof Light:
Power: 50W/100W
Color Temperature: 5000K
CRI: >80
IP Rating: IP66
Certification: ATEX or IECEx certified for hazardous areas
Waterproof Fixtures:
Power: 40W/60W/80W
Luminous Flux: 4000 lm 8000 lm
IP Rating: IP66 (Ideal for wet environments)
Installation: Ceiling-mounted or chain-hung

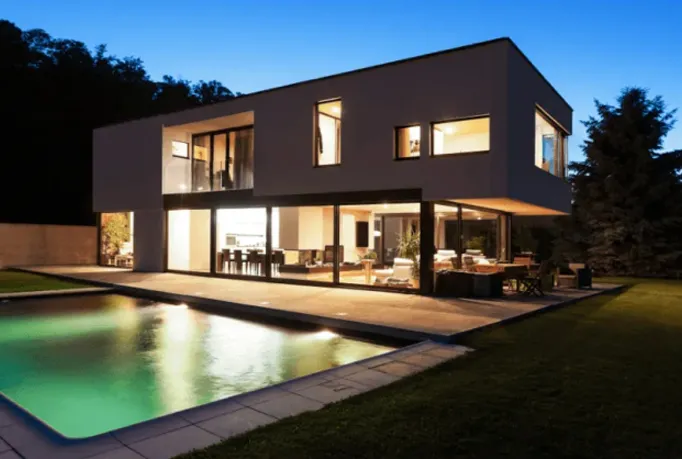

OUTDOOR LIGHTING
Application: Parks, courtyards, building facades
Key Requirements: Aesthetics, energy efficiency, weather resistance
Recommended Fixtures & Parameters:
Floodlight:
Power: 30W/50W/100W
Beam Angle: 15°/30°/60°
Color Temperature: 2700K/3000K (Warm White) or RGB
IP Rating: IP65
CRI: >80
Impact Protection: IK08
In-ground Light:
Power: 5W/10W/15W
Color Temperature: 3000K (Warm White) / RGB
IP Rating: IP67
Load: Can withstand over 10 tons of vehicle pressure
Installation: In-ground installation
Garden Light:
Power: 15W/30W
Luminous Flux: 1200 lm - 3000 lm
Color Temperature: 3000K - 4000K
IP Rating: IP65
CRI: >80
Application: Urban roads, rural highways, sidewalks
Key Requirements: Uniform lighting, energy efficiency, durability
Recommended Fixtures & Parameters:
Street Light:
Power: 100W/150W/200W
Luminous Flux: 12000 lm - 24000 lm
Color Temperature: 4000K - 5000K
CRI: >70
IP Rating: IP66
Light Control/Timer Function: Supports automatic on/off control
Solar Street Light:
Power: 30W/50W
Luminous Flux: 3000 lm - 5000 lm
Solar Panel: 100W - 150W
Battery Capacity: 150Ah - 200Ah
IP Rating: IP65
Pathway Light:
Power: 10W/15W
Luminous Flux: 1000 lm - 1500 lm
Color Temperature: 3000K - 4000K
IP Rating: IP65
Installation Height: 1m - 1.5m
SPECIAL LIGHTING
Application: Escape routes, public buildings. Recommended Fixtures & Parameters:
Emergency Light
Power: 3W/5W
Emergency Duration: 90 minutes - 180 minutes
Backup Battery: Ni-Cd or lithium battery
CRI: >70
IP Rating: IP40 (Indoor), IP65 (Outdoor)
Exit Sign Light
Power: 3W/5W
Battery Type: Ni-Cd battery
Emergency Duration: 120 minutes
IP Rating: IP40
KEY SELECTION POINTS SUMMARYA
01
Select color temperature based on the scenario
Offices benefit from 4000K neutral white, while homes favor 2700K - 3000K warm white.
02
Color Rendering Index (CRI)
For residential and commercial areas, CRI >80 is recommended, and CRI >90 is ideal for display spaces or high-end locations.
03
Match power and luminous flux
Choose suitable power and luminous flux according to the space size and lighting needs, ensuring sufficient brightness coverage.
04
IP Rating
Indoor fixtures usually have lower IP requirements, while outdoor fixtures need at least IP65 for protection against dust and water.
05
Customization Options
Optilux offers custom lighting solutions, including fixture design, light color, and special features to meet project-specific needs.
COMPREHENSIVE CUSTOMIZED SERVICES
From size to light source, everything is customized for you, We provide you with a full range of lighting customization services. Contact us now to create your ideal lighting experience.
