200W CCT 3000-6000K Explosion Proof Lights
| CRI | >80 | ||||
| Delivered flux | 22000 lm | ||||
| Delivered efficiency | 110 lm/W | ||||
| Input power | 200 W | ||||
| Supply voltage | AC 220V | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 30°/60°/90°/120° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 22000 lm | ||||
| Delivered efficiency | 110 lm/W | ||||
| Input power | 200 W | ||||
| Supply voltage | AC 220V | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 30°/60°/90°/120° | ||||
PARAMETER
| IP rating | 66 | ||||
| Ik rating | 8 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >80 | ||||
| Step McAdam | 3 | ||||
| Source flux | 28000 lm | ||||
| Source efficiency | 140 lm/W | ||||
| Delivered flux | 22000 lm | ||||
| Delivered efficiency | 110 lm/W | ||||
| Input power | 200 W | ||||
| Supply voltage | AC 220V | ||||
| Insulation Class | insulation class III | ||||
| Power supply | Built in constant current driver | ||||
| Material | aluminum+tempered glass | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | 30°/60°/90°/120° | ||||
| Mounting | surface mount | ||||
| Reflector color | / | ||||
| Finishing | gold | ||||
Working temperature: -40C° to +50C°
Storage temperature: -40C° to +75C°
LIGHT CONTROL
ON/off
CONSTRUCTION

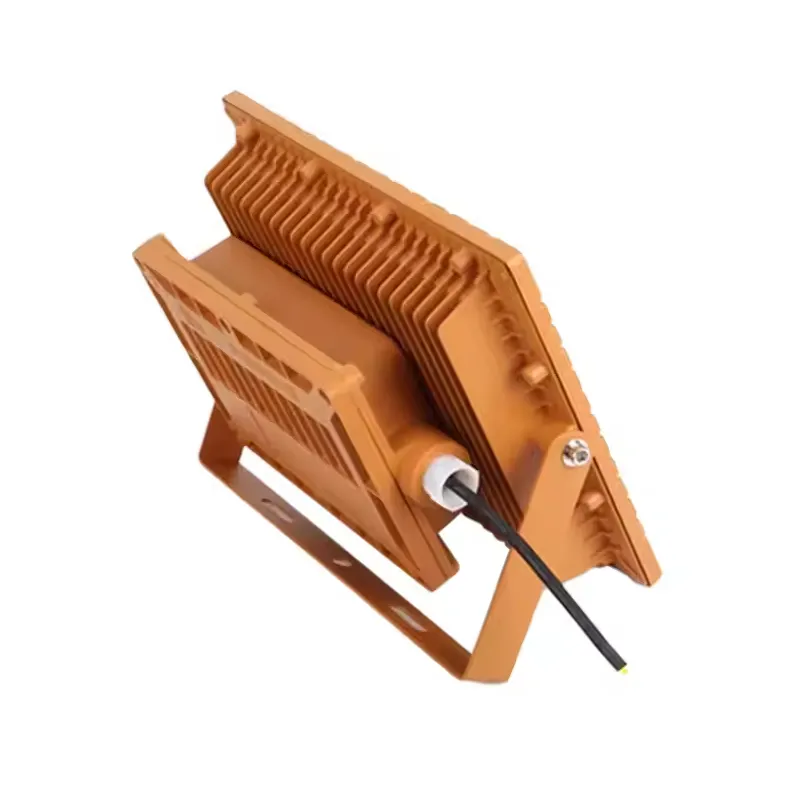

Die cast aluminum shell, surface sandblasting treatment, anti-corrosion and rust prevention, adjustable bracket, tempered glass, stainless steel screws
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
SPECIFICATIONS
TECHNICAL DRAWING
PHOTOMETRICS
