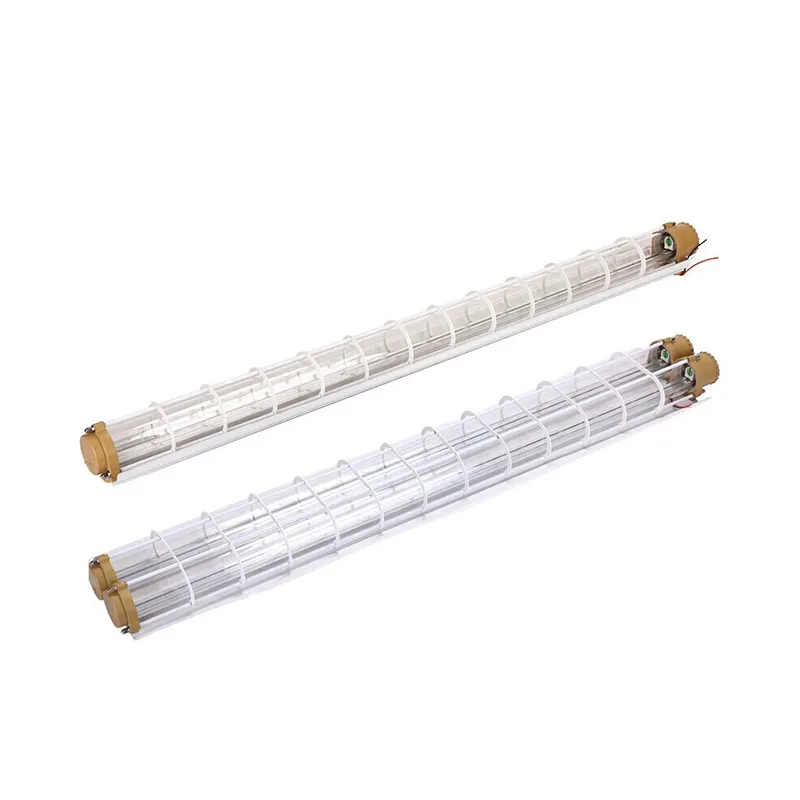

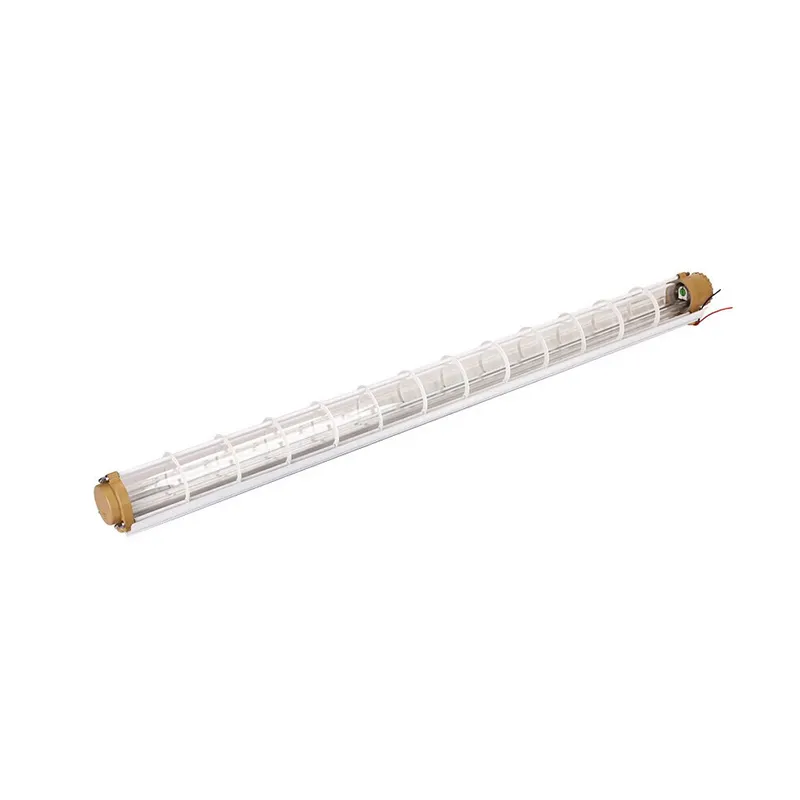

18W IP55 Explosion Proof Lamp Tube
| CRI | >80 | ||||
| Delivered flux | 2520 lm | ||||
| Delivered efficiency | 140 lm/W | ||||
| Input power | 18W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 6000-6500K | ||||
| Beam angle | 120° | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 2520 lm | ||||
| Delivered efficiency | 140 lm/W | ||||
| Input power | 18W | ||||
| Supply voltage | 110~240V AC | ||||
| Light colour/CCT | 6000-6500K | ||||
| Beam angle | 120° | ||||
PARAMETER
| IP rating | 55 | ||||
| Ik rating | 8 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >80 | ||||
| Step McAdam | 3 | ||||
| Source flux | 2700 lm | ||||
| Source efficiency | 150 lm/W | ||||
| Delivered flux | 2520 lm | ||||
| Delivered efficiency | 140 lm/W | ||||
| Input power | 18W | ||||
| Supply voltage | 110~240V AC | ||||
| Insulation Class | insulation class I | ||||
| Power supply | Built in constant current driver | ||||
| Material | Aluminum | ||||
| Light colour/CCT | 6000-6500K | ||||
| Beam angle | 120° | ||||

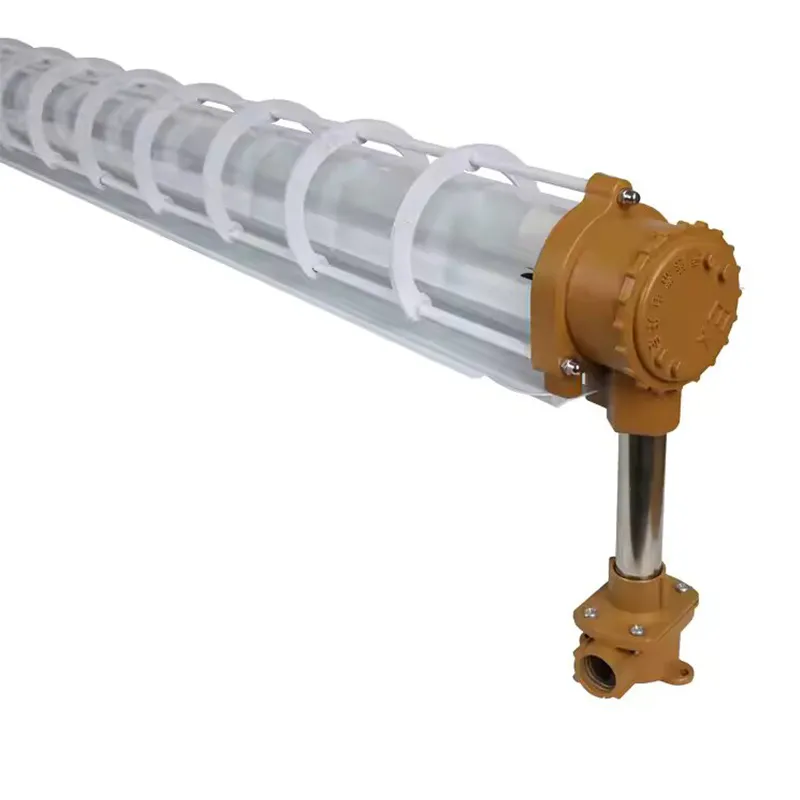

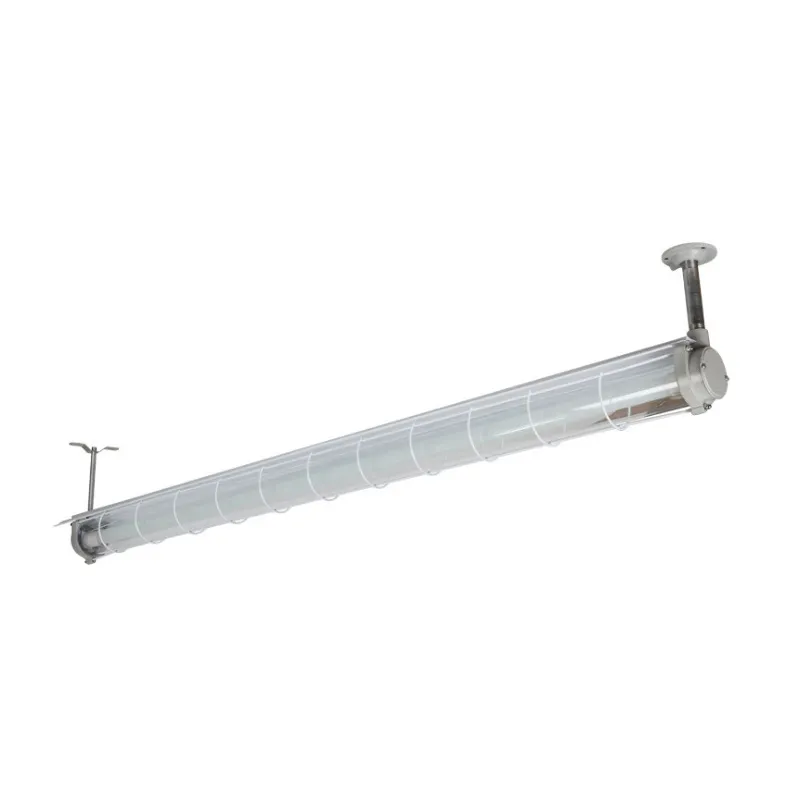

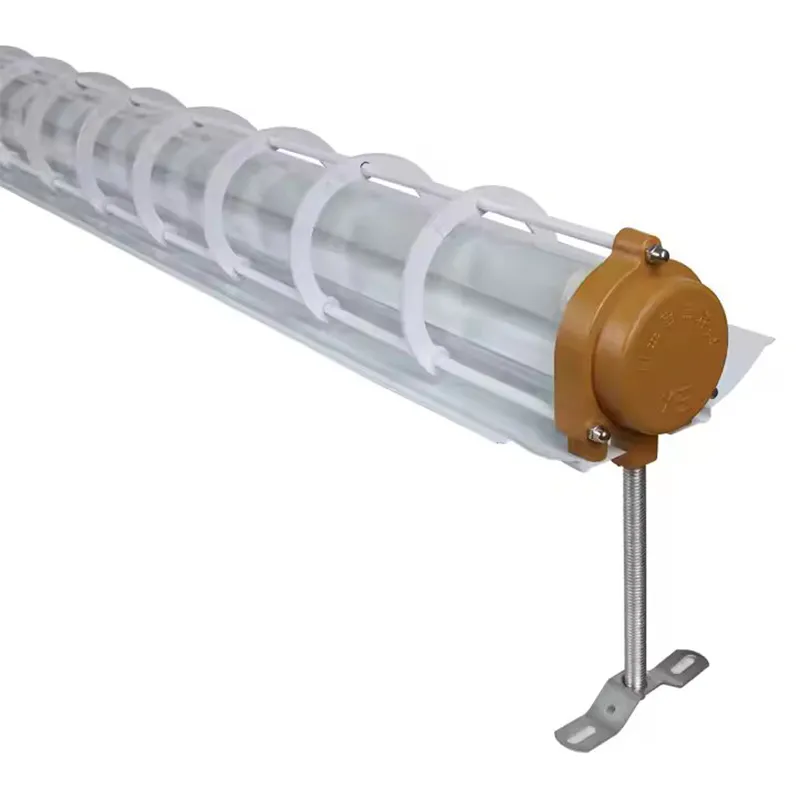

| Mounting | Suspension installation | ||||
| Reflector color | - | ||||
| Finishing | Grey/Yellow | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/off,DALI dimming
CONSTRUCTION
Die-casting aluminum case,excellent heat dissipation performance, Durable outdoor painting process of the product,excellent quality.anti-corrosion and anti-rusting performance, widely used in different environment
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel
SPECIFICATIONS

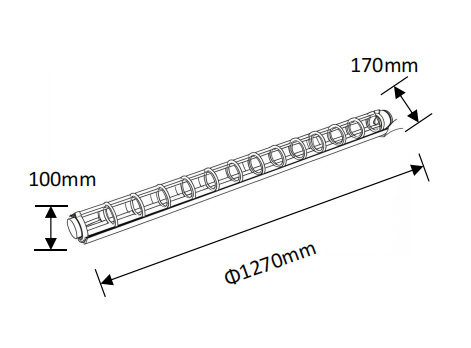

TECHNICAL DRAWING
PHOTOMETRICS
