7W CCT 3000-5000K BR20 Bulbs
| CRI | >80 | ||||
| Delivered flux | 770 lm | ||||
| Delivered efficiency | 110 lm/W | ||||
| Input power | 7W | ||||
| Supply voltage | 110V/220V AC | ||||
| Light colour/CCT | 3000K/5000K | ||||
| Beam angle | diffuse | ||||
5-YEAR WARRANTY
5-YEAR WARRANTY
| CRI | >80 | ||||
| Delivered flux | 770 lm | ||||
| Delivered efficiency | 110 lm/W | ||||
| Input power | 7W | ||||
| Supply voltage | 110V/220V AC | ||||
| Light colour/CCT | 3000K/5000K | ||||
| Beam angle | diffuse | ||||
PARAMETER
| IP rating | 20 | ||||
| Ik rating | 6 | ||||
| Source type | Hight power LED | ||||
| Source life time | >50,000h at 25°C ambient temperature | ||||
| CRI | >80 | ||||
| Step McAdam | 3 | ||||
| Source flux | 980 lm | ||||
| Source efficiency | 140 lm/W | ||||
| Delivered flux | 770 lm | ||||
| Delivered efficiency | 110 lm/W | ||||
| Input power | 7W | ||||
| Supply voltage | 110V/220V AC | ||||
| Insulation Class | insulation class III | ||||
| Power supply | Built in constant current | ||||
| Material | Plastic aluminum | ||||
| Light colour/CCT | 3000K/4000K/6000K | ||||
| Beam angle | diffuse | ||||
| Base | E26、E27 | ||||
| Reflector color | - | ||||
| Finishing | white | ||||
TEMPERATURE LIMITS
Working temperature: -30C° to +50C°
Storage temperature: -50C° to +80C°
LIGHT CONTROL
ON/off,Phase dimming
CONSTRUCTION
The outermost shell is made of plastic, the inside is made of aluminum, and the PC diffusion lampshade
WARRANTY
• 5-year limited system warranty standard
• Warranty does not cover product failure due to an overvoltage event (power surge)
• For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel
SPECIFICATIONS

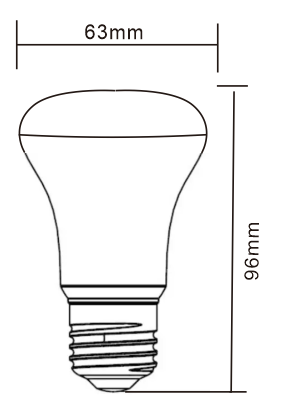

TECHNICAL DRAWING
PHOTOMETRICS
